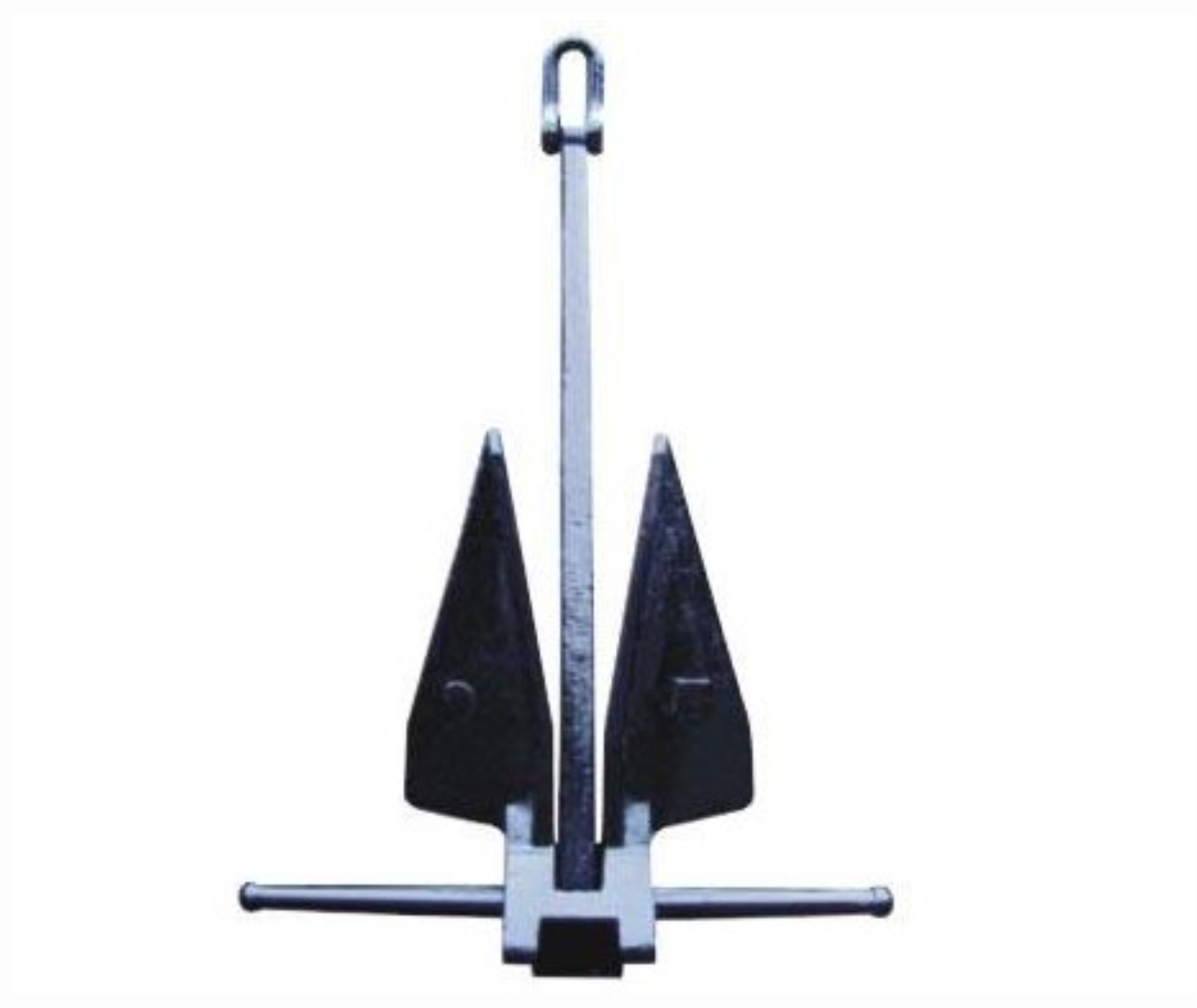

Danforth HHP Anchor
|
Nominal Weight(LBS) |

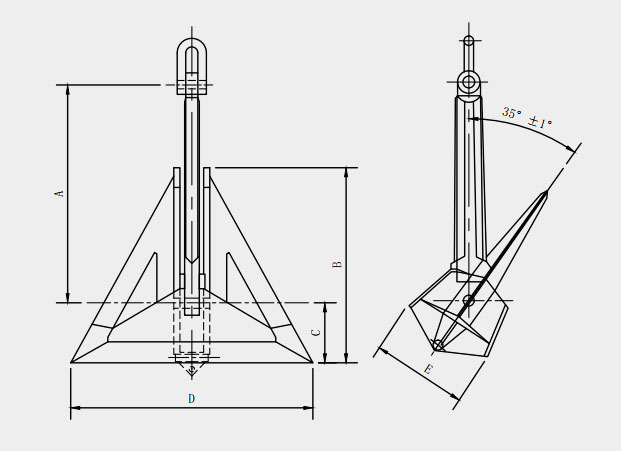

Size (MM) |
||||||
|
A |
B |
C |
D |
E |
F |
||
|
100 |
159 |
322 |
714 |
485 |
800 |
219 |
|
|
150 |
183 |
372 |
793 |
560 |
926 |
253 |
|
|
200 |
203 |
412 |
874 |
621 |
995 |
281 |
|
|
250 |
225 |
457 |
960 |
689 |
1075 |
312 |
|
|
300 |
228 |
461 |
1000 |
706 |
1166 |
314 |
|
|
400 |
257 |
522 |
1090 |
788 |
1284 |
356 |
|
|
500 |
274 |
554 |
1180 |
836 |
1380 |
378 |
|
|
600 |
290 |
588 |
1253 |
888 |
1466 |
401 |
|
|
750 |
314 |
635 |
1350 |
958 |
1578 |
433 |
|
|
1000 |
344 |
694 |
1488 |
1060 |
1739 |
472 |
|
|
1250 |
367 |
741 |
1603 |
1135 |
1864 |
505 |
|
|
1500 |
396 |
800 |
1703 |
1207 |
1988 |
545 |
|
|
2000 |
438 |
888 |
1875 |
1336 |
2190 |
604 |
|
|
2500 |
470 |
950 |
2020 |
1432 |
2300 |
647 |
|
|
2625 |
470 |
950 |
2020 |
1432 |
2300 |
647 |
|
|
2750 |
485 |
960 |
2120 |
1432 |
2335 |
650 |
|
|
3000 |
502 |
1033 |
2146 |
1575 |
2396 |
710 |
|
|
3500 |
550 |
1111 |
2265 |
1677 |
2515 |
757 |
|
|
4000 |
552 |
1114 |
2365 |
1680 |
2623 |
759 |
|
|
5000 |
595 |
1200 |
2480 |
1811 |
2850 |
818 |
|
|
6000 |
630 |
1274 |
2680 |
1920 |
3164 |
866 |
|
|
6600 |
652 |
1317 |
2792 |
1986 |
3260 |
897 |
|
|
8000 |
692 |
1398 |
2970 |
2109 |
3475 |
971 |
|
|
9000 |
715 |
1448 |
3080 |
2200 |
3490 |
990 |
|
|
10000 |
735 |
1484 |
3200 |
2270 |
3591 |
1010 |
|
|
15000 |
851 |
1700 |
3680 |
2610 |
4100 |
1160 |
|
|
20000 |
936 |
1870 |
4050 |
2870 |
4510 |
1276 |
|
|
30000 |
1136 |
2250 |
4900 |
3400 |
5400 |
1520 |
|
|
35000 |
1208 |
2414 |
5250 |
3670 |
5830 |
1642 |
|
|
40000 |
1286 |
2588 |
5625 |
3930 |
6250 |
1758 |
|
|
45000 |
1378 |
2745 |
5968 |
4172 |
6610 |
1867 |
|
|
50000 |
1450 |
2890 |
6282 |
4393 |
6590 |
1965 |
|
